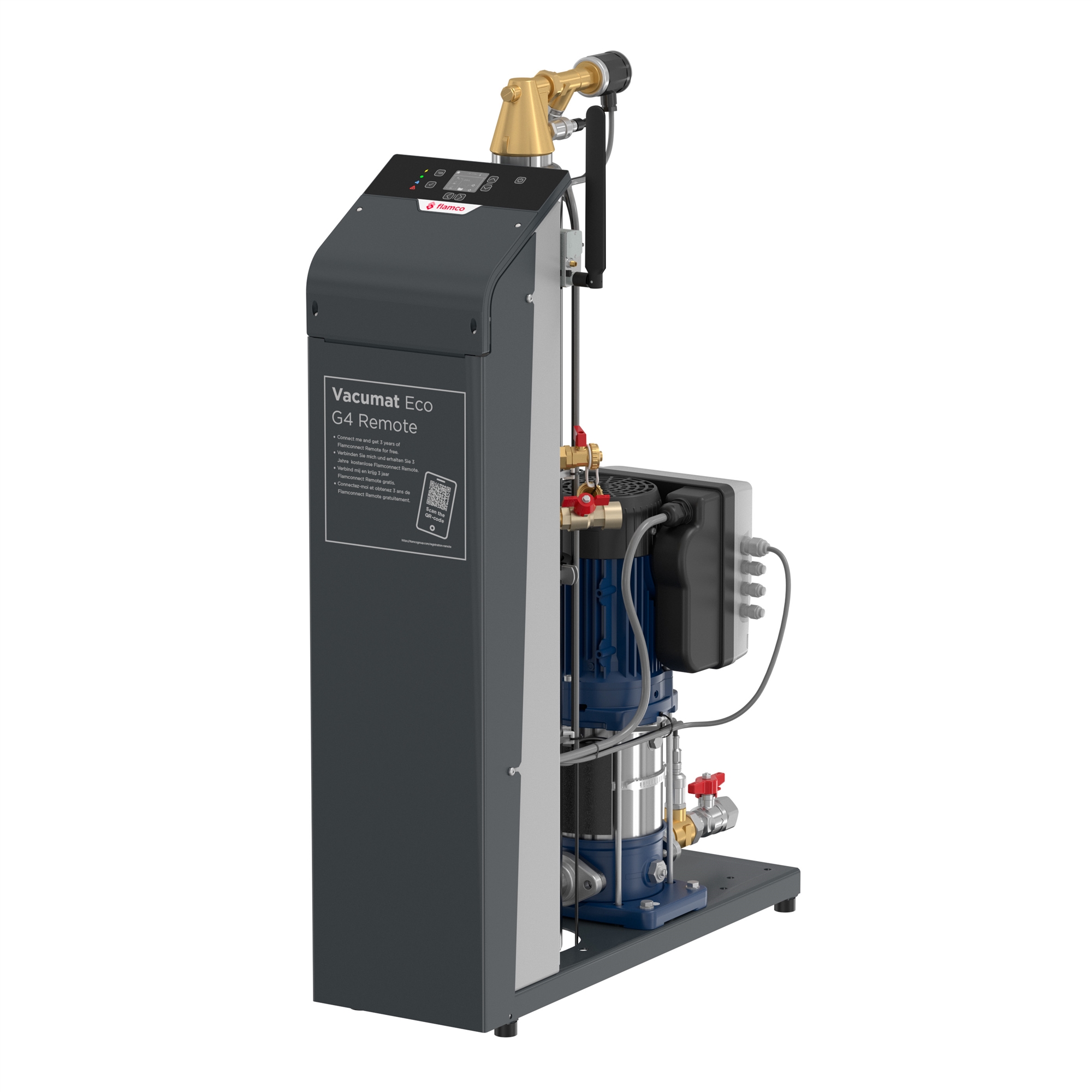

Flamco Vacumat Eco 600 G4 Remote

Pris 54.163,00 kr.

Information
Specifikationer
Anmeldelser

Tilslutningsspænding - 220 - 240 V
Frekvens - 50/60 Hz
Max. electric power input - 0.75 kW
Mærkestrøm - 4.09 A
Suitable for closed system - Ja
With integrated replenishment automat - Ja
Max. glycol mixture - 50 %
Flow-through capacity - 0 - 1000 l/h
Max. gennemstrømning - 1000 l/h
Connection size inlet - 3/4 tomme
Connection inlet - Internal thread cylindrical BSPP-G (ISO 228-1)
Connection size outlet - 1 tomme
Connection outlet - Internal thread cylindrical BSPT-Rp (ISO 7-1 / EN 10226-1)
Connection size refill/top-up - 3/4 tomme
Connection type refill/top-up - Internal thread cylindrical BSPP-G (ISO 228-1)
Bredde - 260 mm
Højde - 1030 mm
Dybde - 690 mm
Sound pressure level - 55 dB(A)
Omgivelsestemperatur - 3 - 45 °C
Article compression class - PN 10
Beskyttelsesklasse (IP) - IP42
Max. installation content - 3250000 l
Operating pressure - 0.8 - 5.4 bar
With backflow safeguard - Ja
With insulation - Nej
LAN-forbindelse - Ja
WLAN - Nej
Med kommunikationsinterface RS 485 - Ja
Kommunikationsinterface inverter MOD-Bus - Ja
Bluetooth - Ja
Supporting protocol for BACnet - Ja
Potentialfri skiftekontakt - Ja
Touchscreenbetjening - Nej
Remote controllable function - Ja
Medium temperature (continuous) - 3 - 90
Max. Arbejdstryk - 10

VVS-Nr.: 17006

Datablad
